Description

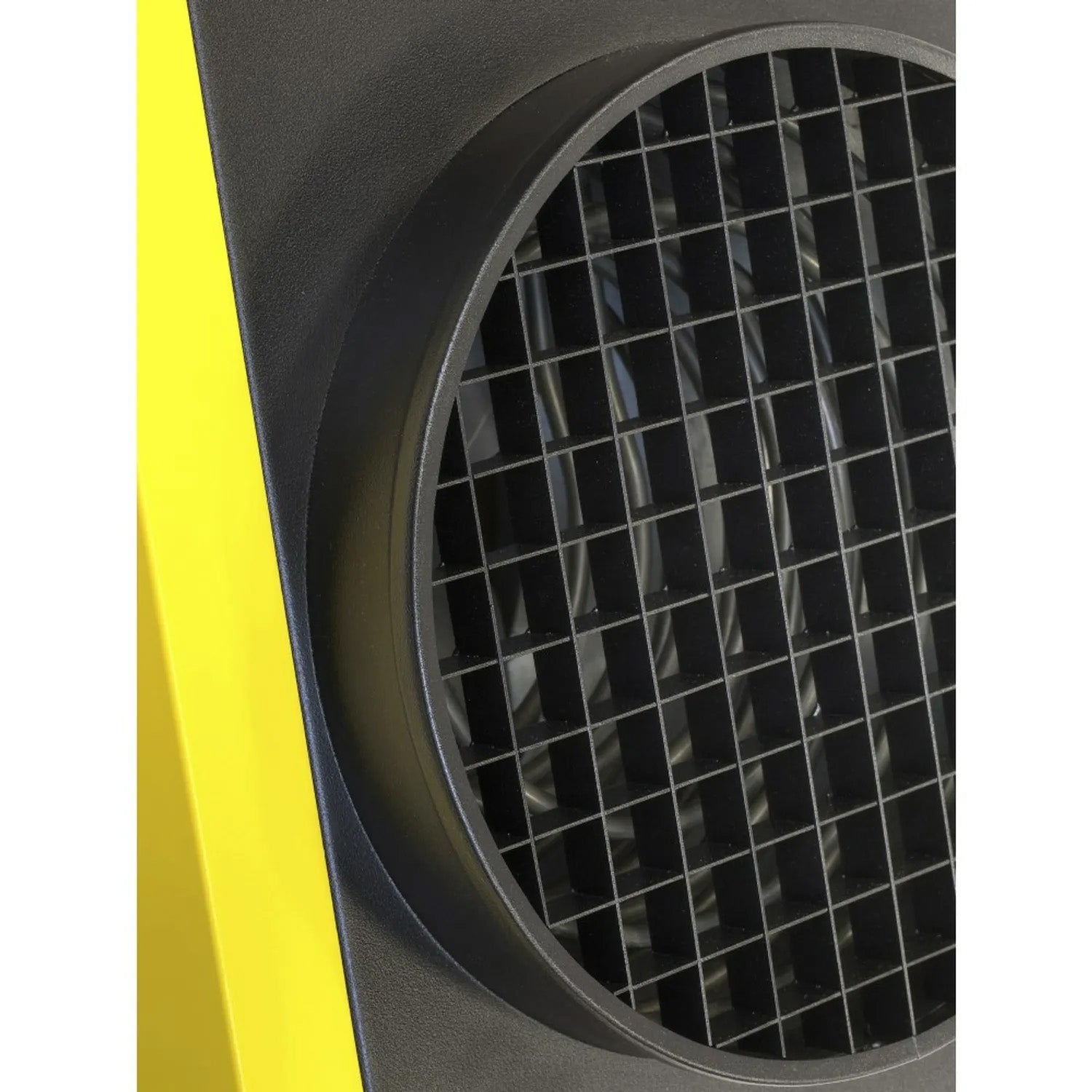

With a high blower capacity of max. 1785 m³/h, the powerful 18kW "Trotec TEH 100" fan heater ensures rapid heating of large rooms. For a secure hold of the connected warm air hose, the heater is equipped with a heat-insulated connection piece including a special hose support ring. An integrated discharge grille also promotes a directed warm air flow.
The robust construction made of protective-coated sheet steel houses a specially developed, flow-optimized chassis. This design maximizes system efficiency by enabling a focused hot air flow without turbulence losses, even over hose lengths of up to 15 m.

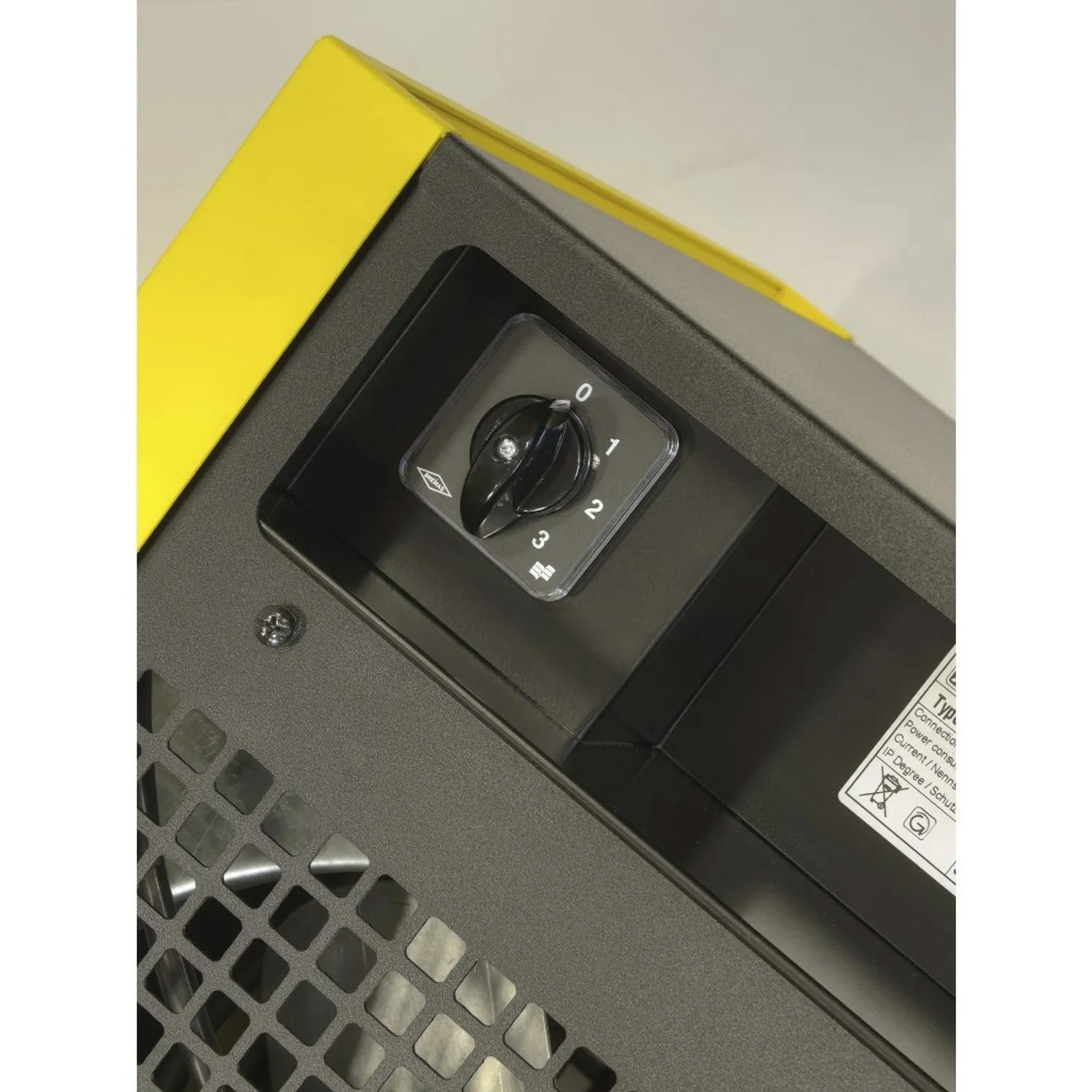

The robust stepped control enables demand-oriented power dosing. Step one activates the fan; steps two to four increase the heating output in parallel in three stages to the maximum value.

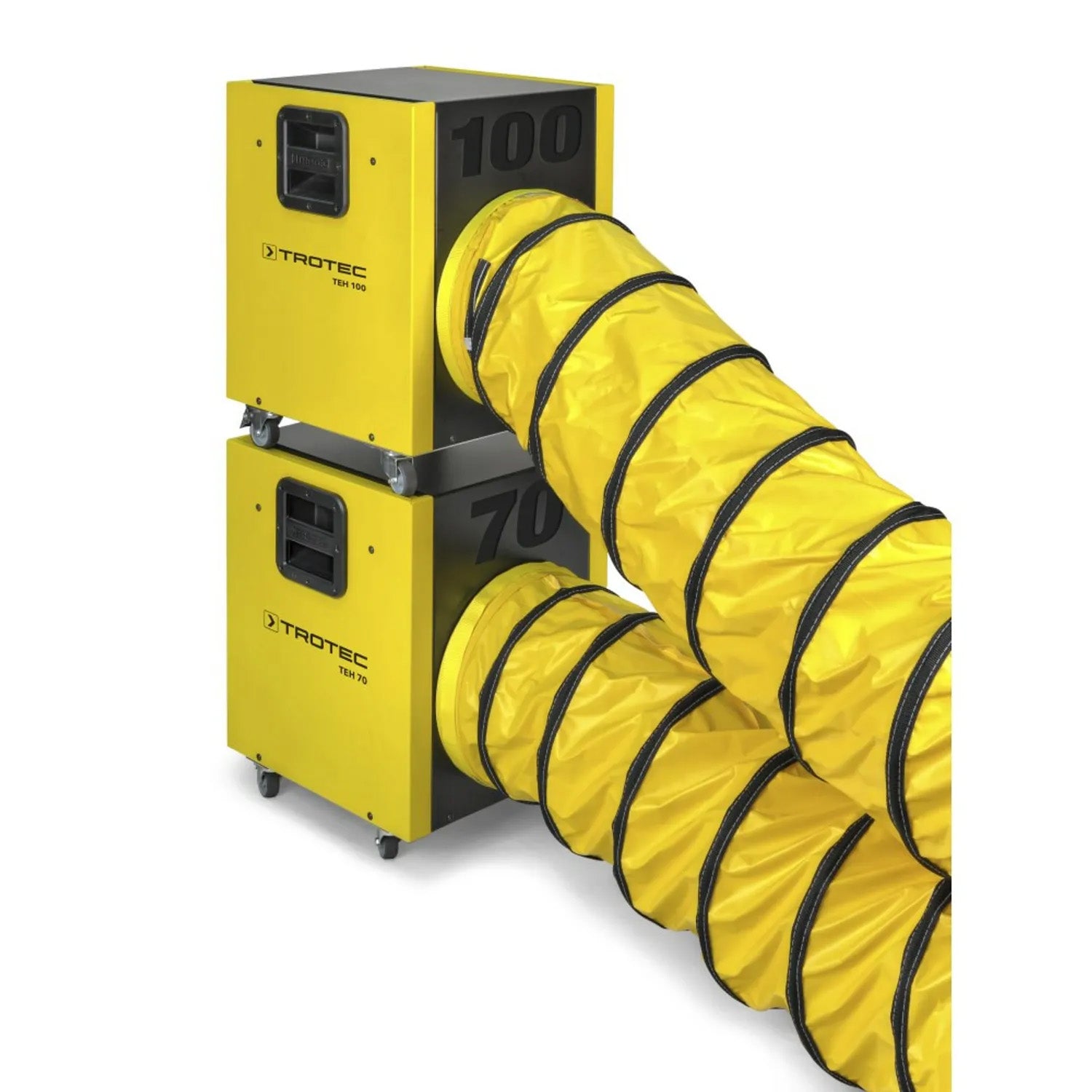

The multi-stackable electric heater is flexible and space-saving, and can be stacked with models of identical dimensions, such as the TEH 70, thanks to an identical stacking groove. This allows for space-saving storage and flexible, individual heating setups in use, such as 180-degree stacking installations for multi-directional air distribution.
The all-round swivel castors facilitate relocation. In stacked installations, the wheels, locked by a roll-stop latch in the stacking groove, provide stable support.
Technical and Practical Advantages at a Glance
- Particularly durable sheet steel construction with resistant protective coating.
-
Flow-optimized chassis for a focused, turbulence-free warm air flow.
- Practical stacking groove for stable, space-saving storage and transport.
-
Double-walled housing for minimal heating of the outer casing.
- Extremely maintenance-friendly design.
- Robust Trotec ergonomic grip recesses with internal grip clip for optimal carrying comfort.
-
Practice-optimized German industrial design (registered design).
-
Multi-stackability with models of identical dimensions.
Technical data
| Trotec item no. |
1410000220 |
| Product information |
Max. stacking height 3 |
| Storability |
stackable |
| Fan type |
axial |

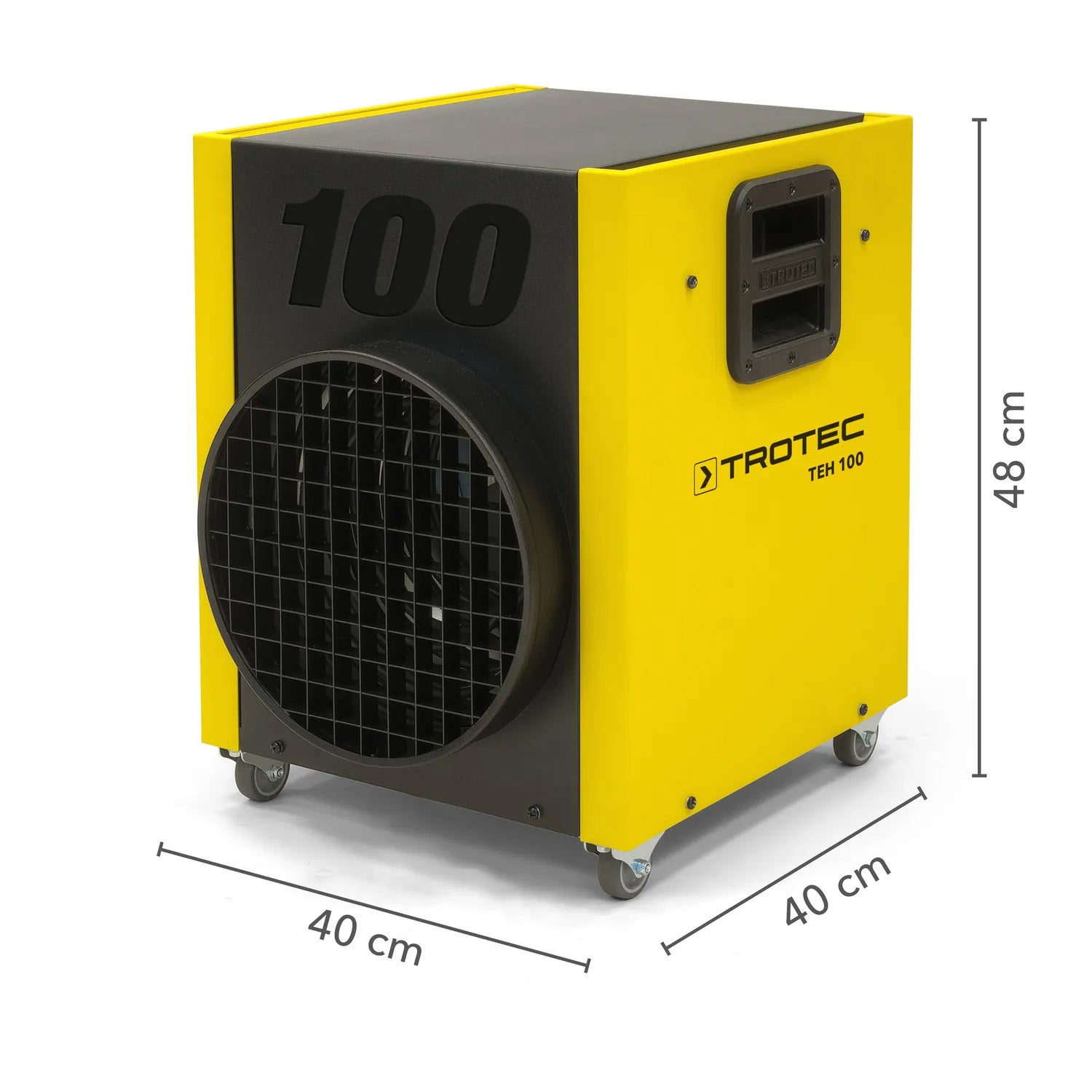

| Length without packaging |
465 mm |
| Length with packaging |
435 mm |
| Width without packaging |
425 mm |
| Width with packaging |
495 mm |
| Height without packaging |
555 mm |
| Height with packaging |
600 mm |
| Weight without packaging |
27.5 kg |
| Weight including packaging |
29.5 kg |
| Hose connection diameter |
300 mm |
| Max. hose length |
15 m |
| Principle of operation |
electrical |
| Heating element |
stainless steel heating coil |
| Rated current consumption |
27.3 A |
| Mains connection and frequency |
400 V, 50 Hz |
| Power consumption / max. heating capacity |
18 kW |
| Recommended fuse protection |
32 A |
| Cable length |
0.75 m |
| Connection plug designation |
CEE 32 A | 5-pole |
| Overheating protection |
60 °C |
| Max. air volume |
1785 m³/h |
| Fan stages |
1 |
| Heating capacity stage 1 |
0 kW (fan operation) |
| Heating capacity stage 2 |
9 kW / 7740 kcal |
| Heating capacity stage 3 |
13.5 kW |
| Heating capacity stage 4 / max. |
18 kW / 15'480 kcal |
| Max. temperature increase (at 3 m distance) |
38 °C |
| Housing design |
metal |
| Mobility |
carrying/transport handle(s), rubber-tyred metal wheels |
| Functions |
On/off switch, overheating protection |
| Sound level (at 1 m distance) |
73 dB(A) |
| Scope of delivery (accessories) |
extension cable, external thermostat, hoses (normal temperature 300 mm), universal tension belt |
