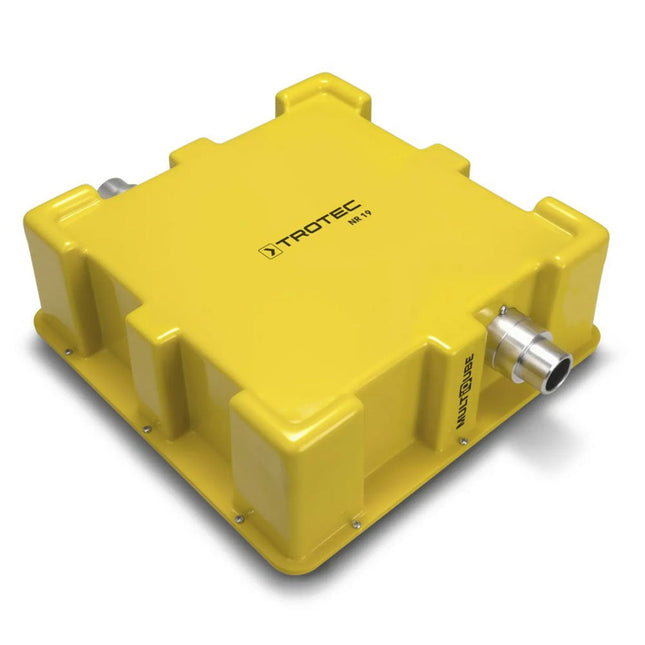

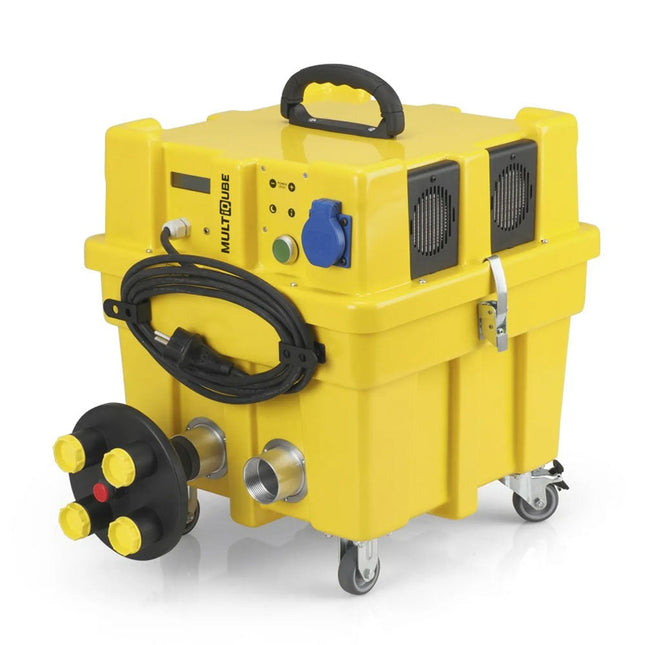

With the professional combination device, you can completely replace a comparable MultiQube tower for drying insulation layers with just one device. This offers 20% more area performance, 50% lighter weight, and 50% space savings! This also makes the transport from the service vehicle to the damage site 100% faster. A multi-device installation with complicated tubing is completely eliminated. Set up, connect, turn on – done! No additional equipment technology is required, as everything is already integrated and ready for connection: a powerful VX-5 turbine insulation layer dryer, a water separator, a 4-stage filter system, and a high-performance silencer – ultra-compactly combined in a robust, stackable aluminum construction that offers you significantly more advantages compared to multi-device solutions while also considerably reducing costs. Your employees will thank you too: 50% less carrying, lifting, hauling, stacking – 100% less tubing, cabling, securing – 20% less assembling.   Worldwide unique integral solution   • VX-5-Turbine• Water separator WA 4i• HEPA filter module• Silencer NR 19 Everything completely installed and ready to connect – lightweight, compact, and powerful – in the world's only integral solution that is both economically and energetically convincing.    Advantages at a Glance • Replaces 4 devices: water separator, HEPA filter, silencer, and all side channel blowers in the power classes from 0.4 kW to 3 kW.• Up to 75% smaller than competitive designs• Up to 20% more area performance than a comparable MultiQube system• 50 % less carry, lift, stack• As quick and easy to install as no other system• Fully automatic always the most effective drying performance thanks to HiDry automation• Optiflow-NT multifunction display with clear text status display and performance control color lighting• Adaptive power control for flexible vacuum surface drying from 10 m² to 85 m²• Digital counter for operating hours and energy consumption• DA-4 interface for real-time remote monitoring of system status and drying progress• Integrated thermal protection to prevent damage to drying equipment, inventory, and building fabric.• Night operation - Whisper mode• Wear-free touch control panel• Additional HEPA filtration cost-effective only when needed• Total weight only 27 kg• High-quality product, made in Germany  Small cause, big effect Thanks to its ultra-compact design, this combination device allows you to achieve up to 100% more work productivity and up to 300% more storage productivity. All "practical time wasters" can be eliminated in one go – thus, you benefit from extreme productivity gains in the daily routine of restorers. Fewer devices to manage and "move" per damage, less storage requirement, more equipment per trip in the service vehicle, faster loading and unloading, quicker transport from the vehicle to the damage site, faster installation, faster dismantling, less cleaning effort. In summary, you can significantly increase your work and storage productivity.  touch control panel Convenient operation at the touch of a finger. No controls, no wear. A light press on the corresponding symbol is enough to configure the operation.In addition to the plus-minus buttons for quick selection of power levels, the control panel also features functions for an extra whisper mode as well as a combined display of power consumption and operating hours.  Optiflow-NT-Multifunction Display The current operating status and volumetric flow are clearly readable on the display, even in the dark or from a distance. Additionally, the color of the display lighting automatically indicates how effectively the drying air can flow through the insulation layer at your installation. Green confirms optimal volumetric flow, orange indicates borderline areas, and with a red LED, the air throughput is insufficient for the area, making optimization necessary for quick drying.  Night operation - Whisper mode In whisper mode, the device operates particularly quietly yet efficiently. To reduce noise levels, the power is not simply reduced; instead, it is regulated with noise-optimized weighting to the volume flow optimum of performance level 2."Once activated, the dryer operates in whisper mode for ten hours and then automatically switches back to the previously used power level. Extremely practical for customers who need a maximum dampened noise level for a short time."  Sensor-supported thermal protection function An integrated sensor system monitors the internal air temperature. It automatically switches from the current setting to level 1 before destructive climate conditions above 45 °C are reached inside the device, which could lead to material stress and thus shorten the device's lifespan. The temperature will continue to be monitored and will automatically switch back to regular operation in the event of falling temperatures. However, if the temperature level remains critical for too long, the device will be completely turned off for its protection.  TTKwic-Modus The device features all the water separator performance characteristics of the WA 4i, including two TTKwic quick couplings for easy drainage connection of dehumidifiers. To ensure that their condensate is reliably pumped out through the TTKwic quick couplings even when switched off, you can set the device to TTKwic mode via the control panel. The motor is off in this mode, but the pump remains active.  Turbo engine with adaptive control of power The four-stage adjustable turbo engine reaches up to 20,000 rpm and guarantees maximum efficiency at every power level, because the integrated HiDry automation continuously measures the current volumetric flow in m³/h and automatically regulates the operation to the optimal air throughput. By pressing a button, a higher power class or, if needed, the extra whisper mode can also be selected.  HiDry-Automatic Fully automatic always the most effective drying performance "Generating motor power beyond the required level does not speed up drying, but it does increase wear and power consumption. The crucial success factor for accelerated drying progress is not the motor power, but a consistently high air flow in the insulation layer zones to be dried." "Therefore, the Qube+ is equipped with the innovative HiDry control automation, which adjusts the performance not based on resistance, but rather oriented towards volumetric flow, and in this way automatically guarantees the most effective performance at every stage for each drying setup." Similar to a "cruise control" in a car, the sensor-supported HiDry automation continuously adjusts the volumetric flow performance of the Qube+ dynamically to the preset optimum of the respective performance level."At the beginning of the drying process, when the resistance is still relatively high, more motor power is required to maintain the volumetric flow rate; however, the power requirement continuously decreases as the drying progresses."The HiDry automatic system ensures throughout the entire drying duration that the turbo motor of the Qube+ never generates more power than is necessary to maintain the optimal volume flow.The result: Fastest possible drying with minimal energy expenditure!  Performance-optimized energy consumption "In contrast to conventional side channel blower turbines, the turbo engine of the Qube+ always has performance and power consumption in a linear direct relationship:""If the power is reduced or the back pressure decreases, the power consumption is also reduced. Furthermore, the power control is not resistance-oriented, but is focused on the required flow rate." Thanks to this technology, the Qube+ operates extremely energy-efficiently compared to side channel blowers, especially in the drying phase, practically at the energy-saving Eco rate. Always as much power as you need: Performance Level 1: Optimal for the economical drying of small areas. At this level, the Qube+ performs as much as a 0.4 kW side channel blower, but consumes 70% less power!Performance level 2: Corresponds to the performance of a 0.8 kW side channel blower.Performance level 3: The Qube+ is approximately 10% stronger than a side channel blower with a power of 1.1 to 1.3 kW.Performance level 4: Corresponds to 160% of the performance of a side channel blower with a power of 1.1 kW to 1.3 kW and 95% of the performance of a 3 kW side channel blower.  Stackable construction with telescopic push handle  At the push of a button, the height-adjustable telescopic push handle can be extended and retracted. This allows the handle height to be adjusted to the user's needs and retracted for space-saving storage.The engine cover is additionally equipped with a carrying handle and a practical cable holder. Furthermore, two stacking recesses ensure a secure stand for stacked devices during transport or in storage.  Service-friendly designedThe Qube+ features an integrated service socket, to which a condenser dryer or a drying control unit can be conveniently and time-savingly connected.In addition, the Qube+ also houses a 50 mm threaded connection for process air discharge. This effectively reduces the critical heating of the room temperature to preserve the value of your drying equipment.  Flexible Filter System"For all applications that require HEPA filtration, the intake sleeve of the G4 filter sleeve can be easily and quickly replaced by the HEPA filter module with combined F8 pre-filter sleeve."Whether filter change or cleaning, the maintenance-friendly design of the Qube+ allows for quick and safe work here. The turbo motor, power connection, and essential electrical components are completely housed in the motor cover, which can be removed in no time thanks to the quick-release technology. "After the removal of the cover, the lower part of the Qube+ is completely free of electricity, as there are no cable connections from the motor cover. This allows you to start cleaning directly without any further safety measures."  DA-4 interface The Qube+ comes standard with an interface for data exchange with our drying control unit DA 4 Qube.The connection of both units enables networking of all device data, including real-time remote monitoring of system status and drying progress.  Included accessories and consumables • Water separator floor filter mat, 1 piece• G4 filter sleeve, 1 piece• F7-Z-Line-Filter for filtering the intake engine cooling air, 1 piece• 50 mm hose connection fitting for process air discharge, 1 piece• Water drainage hose, length 5m, Ø 12mm  Our accessory tip: All-weather soundproof hood (Trotec SKU No.: 6100000070)  • Noise reduction of up to 5 dB(A) and additional modulation of high frequencies in low-frequency ranges perceived as quieter• Easy to clean and waterproof material• Optimal for continuous operation in residential environments• Ideally suited for outdoor installation, for example in flat roof drying.• Quickly installable and accessible through double zipper system• Supply and exhaust openings ensure optimal engine cooling free from heat buildup.• Also for the use of the Qube+ with the attached drying control unit DA 4 Qube (On order - the delivery time for this hoe is usually 7-10 working days)          Information video application Qube+ Information video Cleaning Qube+     Technical data   Under vacuum suitable for areas up to   Level 1: 25 m² Level 2: 50 m² Level 3: 85 m² Max. negative pressure 220 mbar Air volume blowing free max. 250 m³/ Std. Volume flow rate HiDry (suction)   Stage Whisper Mode 90 m³ / hr. Stage 1 90 m³ / hr. Stage 2 140 m³ / hr. Stage 3 160 m³ / hr. Stage Boost Mode 180 m³ / hr. Engine power 0.2 - 1.2 kW Noise level at 3 m distance 48 - 62 dB(A) Voltage 220 - 240 V/50 Hz rated current consumption max. 6.7 A Recommended Coverage 16 A cable + plug 3.5 m + EU plug with Swiss fixed adapter T12 Bucket 10 Liter Masse H x B x T 735 x 500 x 490 mm Weight 25.2 kg Hose connections insulation layer drying 3 x Ø 38 mm TTKwic dehumidifier quick couplings 2 Connection for process air discharge 50mm service socket 1 x EU socket (Swiss plugs only fit 2-pole) electricity meter yes, digital operating hour meter and Control and Monitoring DA-4 interface EfiDry-Moisture Sensor Connection Overflow sensor with automatic shut-off Trotec article no. 1.560.000.055 guarantee 2 years Documents / Downloads   User Manual German
