Description

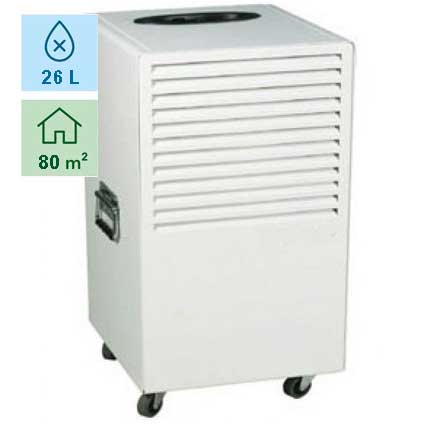

The construction dryer Dryfix FDNF33 is a very robustly built dehumidifier for construction drying, for commercial and industrial use.
"It can be used at room temperatures starting from 1°C and is suitable for unattended continuous operation. It stands on 4 stable wheels and has side carrying handles for easier mobility. The condensate is removed by an integrated pump, with a maximum lift height of 4m (the included hose is 7m long)."
It is suitable
- as a construction dryer
- Dehumidifiers for commercial and industrial use
- for dehumidification of basements up to 80m2 and in case of water damage
- for unattended continuous operation
- for operation with a timer
"When the desired target humidity is reached or when the bucket is full, the device automatically pauses. The built-in operating hour counter clearly and quickly shows how long the device has been in use."
It is very noticeable that the good performance in low humidity areas, where the FDNF33 still extracts water from the air, in which other dryers have long ceased to produce a drop (according to our tests clearly below the threshold of 30% relative humidity).
dehumidification performance
Overview of the approximate dehumidification amounts in liters per day at different room temperatures and humidity levels:
30°C/80% r.H.: 26 Liters
20°C/80% r.H.: 13.5 Liters
20°C/60% r.H.: 10 Liters
10°C/60% r.H.: 5.5 liters (r.H.=relative humidity)
Technical data
dehumidification performance
at 30 °C / 80 % r.H. | 26 liters / day |
| air volume | 250 m³/h (installed, free-blowing: approx. 380 m³/h) |
| Air speed at discharge | ca. 2.20m / Sek |
| Suitable room size | 0 - 80 m² (=200 m³) |
| Suitable room temperature | 1 - 35°C |
| moisture range | 35 - 85 % r.F. |
| Voltage | 220 - 240 V/50 Hz |
| rated current consumption | max. 2.8 A |
| Power consumption | max. 580W or 420W (at 20°C/60% r.H.) |
| Recommended Coverage | 10 A |
| Plug | Swiss plug, 3-pole T12 |
| refrigerant | R410A (350g) |
| Pump | Haile CP12, maximum lift height 4m (no bucket) |
| Hose | 7m length (included in delivery) |
operating noise
(our measurement) | 54 dB(A) at 1 m distance
50 dB(A) at a distance of 2.5 m |
| Dimensions H x W x D | 700 x 350 x 370 mm |
| Weight | 32 kg |
| Automatic defrosting | Heissgas |
| dehumidification automation | infinitely variable hygrostat |
| Ventilator | axial, single-stage blower |
| prefilter | and |
| Timer | no, operation on timer possible |
| Continuous operation possible | and |
| operating hour meter | and |
| memory function | yes (mechanically stores set values) |
| guarantee | 2 years |
